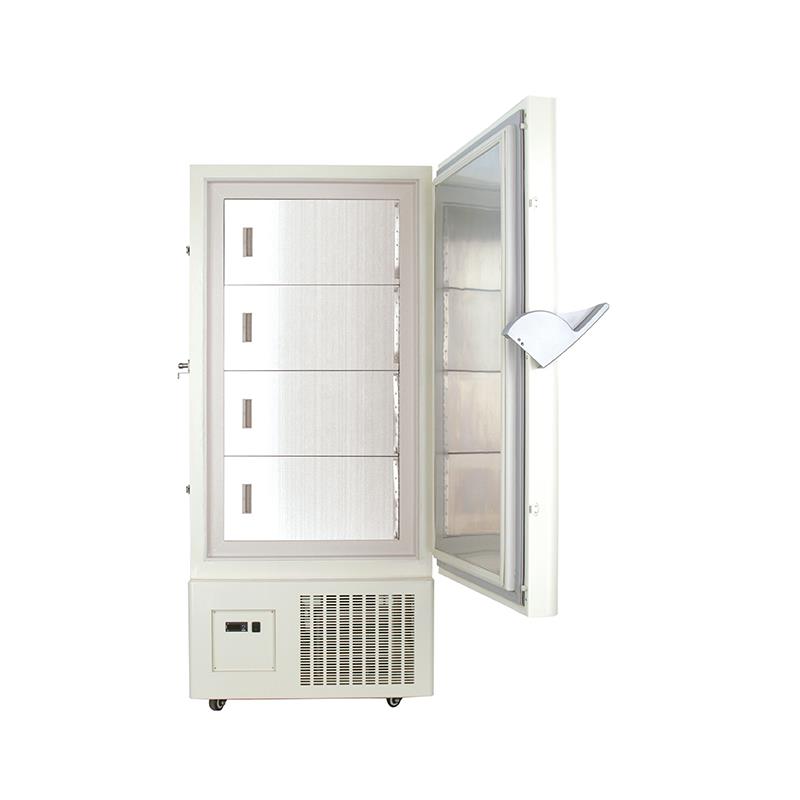

Medical Refrigerator for Low Temperature Storage
Product features
High and low temperature alarm function, alarm temperature value can be set on demand
Multiple protection functions (password protection starts frequently to protect the refrigeration system from running in case of sensor failure)
Fluorine free environment friendly mixed refrigerant
Technical Parameters
| Model | BDF-86V50 | BDF-86V158 | BDF-86V398 | BDF-86V598 | |
| External Size (W*D*H)mm | 600*665*1150 | 700*700*1580 | 850*960*1860 | 940*980*1920 | |
| Internal Size (W*D*H)mm | 361*405*410 | 460*455*800 | 550*630*1140 | 700*680*1255 | |
| Capacity | 50L | 150L | 398L | 598L | |
| Type | Vertical | ||||
| Temp.Range | -86℃ | -86℃ | -86℃ | -86℃ | |
| Temp. Accuracy | 0.1℃ | ||||
| Control System | Microprocessor control LED display | ||||
| Audio and Visual Alarm | High and low temperature | ||||
| Sensor failure | |||||
| Refrigeration Type | Direct refrigeration | ||||
| Refrigerant | Mixture refrigerant | ||||
| Construction | Structur | Unibody design & Mono-assembly foaming (Rigid polyurethane insulation material) | |||
| Internal Material | SS 304 | ||||
| External Material | Cold-rolled steel with anti-bacteria powder coating | ||||
| Door | Lockable door | ||||
| Caster | 4 casters | ||||
| Consumption | 350W | 480W | 580W | 900W | |
| Power Supply | AC110V/220V±10% 50/60Hz | ||||
| Package Size (W*D*H)mm | 670*735*1320 | 785*770*1750 | 935*1030*2030 | 1025*1050*2090 | |
| Net Weight | 78kg | 123kg | 200kg | 250kg | |
| Gross Weight | 98kg | 150kg | 250kg | 315kg | |
