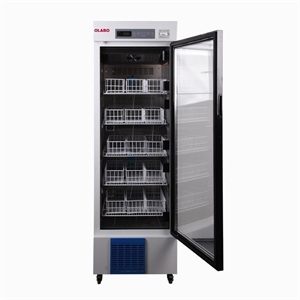

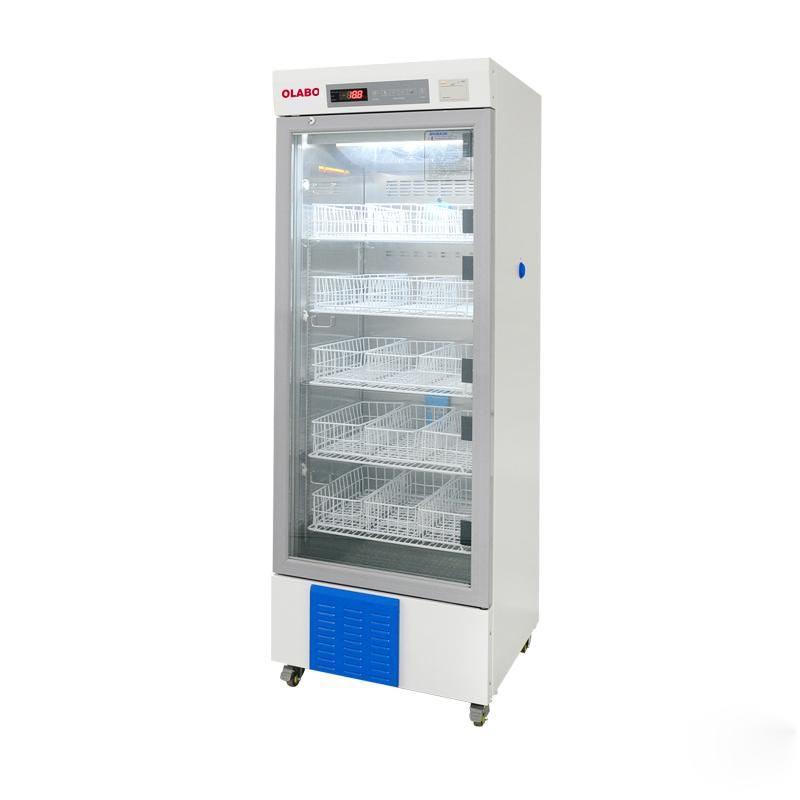

BXC-310 Vertical single door small blood refrigerator
Description
Adopt microcomputer control system and digital temperature display to ensure accurate and stable operation;
Dual display dual control sensors to ensure precise control and display of the temperature in the box, with an accuracy of 0.1°C;
The temperature box design shows that the temperature is closer to the true temperature of plasma;
Standard thermal printer, real-time printing of the temperature value in the box;
Good cooling layout, the temperature in the box is stable within 4±1℃;
Optional monitoring module and special software to realize remote monitoring and SMS alarm;
Reliable temperature control that is not affected by ambient temperature provides the storage environment required for testing plasma, vaccines, and samples.
Technical Parameters
Model
BXC-250
BXC-310
Type (shelf/drawer)/material
Shelf/steel wire dip
Shelf/steel wire dip
Number of shelves/number of blood storage baskets
4/12
5/15
Cooling method (air cooling/direct cooling)
Wind cooling
Wind cooling
Defrosting method (automatic/manual)
No frost
No frost
Refrigerant/g
R134a/230g
R134a/260g
Noise level (db)
50dB(A)
50dB(A)
Ambient temperature (℃)
10~32℃
10~32℃
Temperature range (℃)
4±1℃
4±1℃
Compressor brand/quantity
Secop NL8.4MF/1pc
Secop NL8.4MF/1pc
Evaporator type
Fin type
Fin type
Evaporator material
Copper tube aluminum fin
Copper tube aluminum fin
Condenser type
Fin type
Fin type
Condenser material
Copper tube aluminum fin
Copper tube aluminum fin
sensor type
NTC
NTC
thermostat
Electronic temperature control
Electronic temperature control
Display mode (LCD/LED)
Digital display
Digital display
Voltage/frequency (V/Hz)
220/50Hz
220/50Hz
Power (W)
380
380
Current (A)
2.4
2.4
Internal material
Stainless steel plate
Stainless steel plate
External material
Sprayed steel plate
Sprayed steel plate
Heat insulation
Polyurethane cyclopentane foam
Polyurethane cyclopentane foam
Effective volume (L)
250
310
450ml blood bags
13*3*4=156
13*3*5=195
Net/Gross weight (kg)
120/150
135/167
External dimensions (width * depth * height) (mm)
630*666*1657
630*666*1886
Internal dimensions (width * depth * height) (mm)
530*520*1096
530*520*1325
Packing size (width * depth * height) (mm)
730*690*1690
730*690*1920
High and low temperature alarm
√
√
Power failure alarm
√
√
Thermostat failure alarm
√
√
Battery switch alarm
√
√
Door switch alarm
√
√
Ambient temperature
10~32℃
10~32℃
Power failure alarm time (h)
72
72
printer
Thermal
Thermal
Casters
√
√
Level foot
/
/
Outer door/type
1/electric heating glass door
1/electric heating glass door
Inner door (acrylic)
3
3
Outer door lock
1
1
Test hole (number/location/inner diameter)
1/right/φ23
1/right/φ23
Lamp (LED/fluorescent lamp)
led
led
USB interface (yes or not (is it optional?)
/
/
Remote alarm (with or without (is it optional?)
Optional
Optional
Temperature recorder (with or without (is it optional?)
Optional
Optional
RS232/485 interface (with or without (is it optional?)
/
/
Certification
9001/13485
9001/13485
