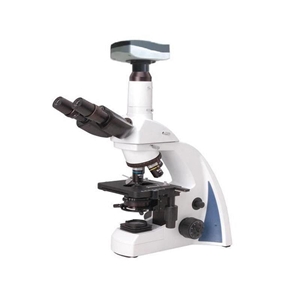

Portable Electronic microscope
Technical Parameters
Magnification
40-1000X
Eyepiece
wide field eyepiece WF10X/18,
Lens tube
trinocular observation head, 30° tilt, diopter adjustable, interpupillary distance 48-75mm
Converter
inward tilt four-hole converter
Infinity objective
Infinity plan achromatic objective 4X, 10X, 40X (spring), 100X (spring, oil)
Condenser
swing-out N.A1.25 Abbe condenser, adjustable rack and pinion, adjustable for lifting
Moving stage
XY mechanical moving large stage, 140X140 (mm), moving range 75X50 (mm), minimum reading value 0.1mm, right hand pull low coaxial handwheel, film holder can hold 2 biological slices
Focus adjustment
Coaxial coarse and fine adjustment, coarse adjustment stroke 37.7mm per circle, fine adjustment stroke 0.2mm per circle, fine adjustment minimum reading value 0.002mm
Light source
220V voltage, S-LED lighting, adjustable brightness
