Product details

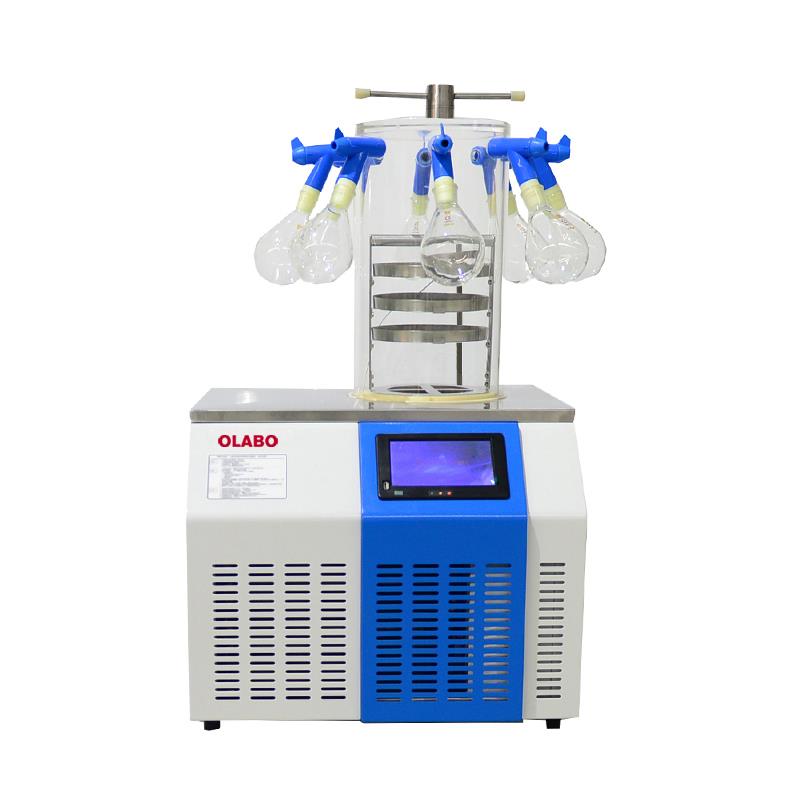

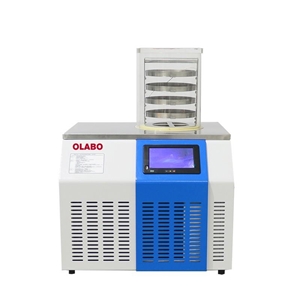

BK-FD10P Ordinary Tabletop Vacuum Freeze Dryer

Descriptions:

The lab series freeze dryer is suitable for freeze drying test of laboratory biomedical samples.Widely used in drugs, biological products,

chemical and food industries. On the heat-sensitive substances such as antibiotics,vaccines, blood products, hormones and other

biological tissue enzymes, freeze-drying technology is applied.

Technical Parameters:

Model	BK-FD10P
Type	Standard chamber with 8 port manifold
Loading Capacity/Shelf (Liquid)	0.3L
Total Loading Capacity (Liquid)	1.2L
Drying Chamber Size (Diameter*H)	Φ260*450mm
Refrigerant	R600a+R290+R23
Cooling System	Air cooling
Power Supply	220V/50Hz,60Hz (single phase)110V/60Hz (single phase)
Power Consumption	1.3KW

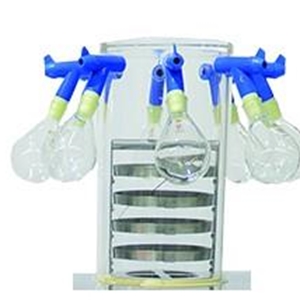

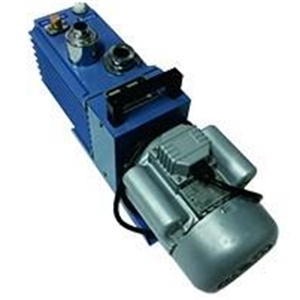

Standard Accessory	Vacuum pump 2L/S, 8m3/h (for all models) Conical-mouth flask 500ml*8 pcs (only for model BK-FD10P/PT)

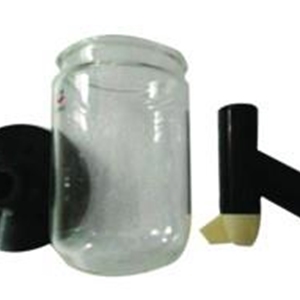

Optional Function & Accessory	Conical-mouth flask and wide-mouth flask(for BK-FD10P/PT) Import vacuum pump
External Size (WDH)	640610550/950mm
Package Size(WDH)mm	705590530
Gross Weight	55kg
