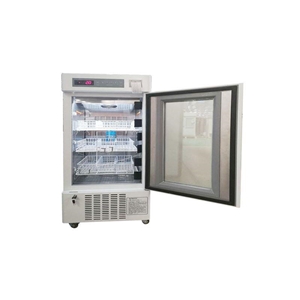

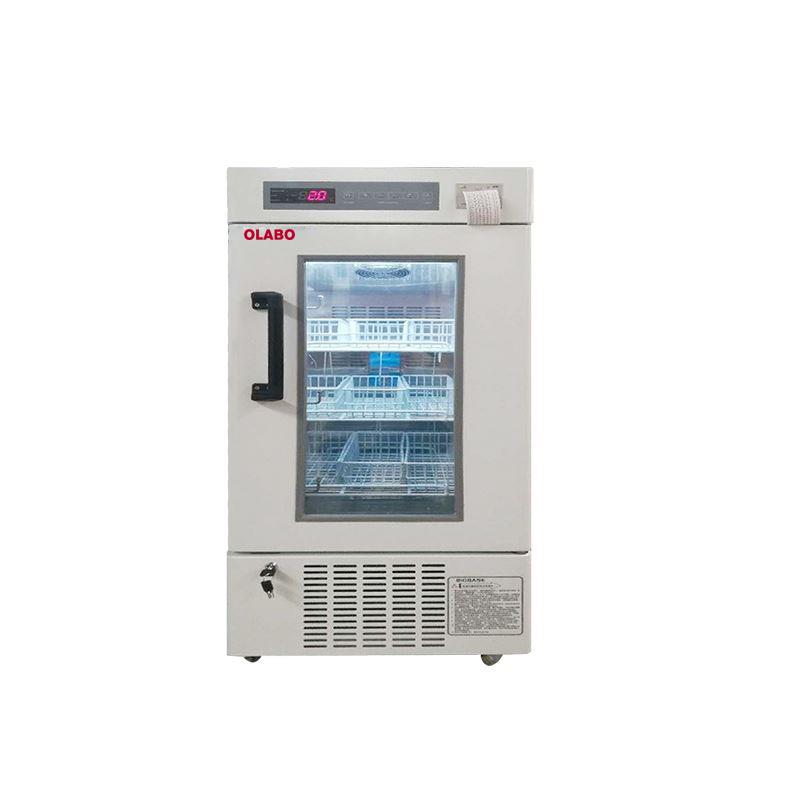

Blood Bank Refrigerator Freezer Equipment
Features
1. Multiple sensors design: make sure the precise monitoring and programming.
2. Double layer transparent glass door, easy to observe, also keep a better cooling temperature.

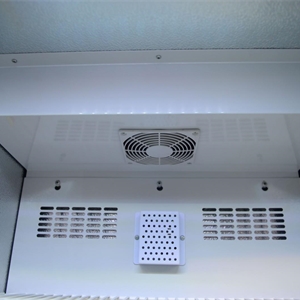

3. Forced air refrigeration system, ensure inner temperature constant and uniform.

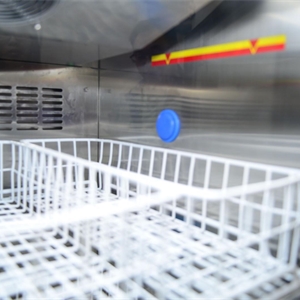

4. Adjustable shelves, improve space utilization; blood storage baskets can be classified.
5. Individual transparent inner door, effectively reduce cool air loss when opening the door.
Technical Parameters
Model
BXC-160
Shelf and blood storage basket material
Steel wire dip
Number of shelves/number of blood storage baskets
3/9
Cooling method (air cooling/direct cooling)
Wind cooling
Defrosting method (automatic/manual)
automatic
Refrigerant/g
R134a/270g
Noise level
60dB(A)
Use environment
10~32℃
Temperature range in the box
4±1℃
Evaporator type
Fin type
Evaporator material
Copper tube aluminum fin
Condenser type
Fin type
Condenser material
Copper tube aluminum fin
Sensor type
NTC
Thermostat
Electronic temperature control
Display mode (LCD/LED)
LED digital tube
Voltage/frequency (V/Hz)
220/50
Power (W)
257
Current (A)
1.17
Internal material
Stainless steel plate
External material
Sprayed steel plate
heat insulation
Polyurethane cyclopentane foam
Effective volume (L)
160
200cc blood bags
11*3*3=99
Net weight/Gross weight (kg)
90/104
External dimensions (width * depth * height) (mm)
530*593*1287
Internal dimensions (width * depth * height) (mm)
430*431*745
