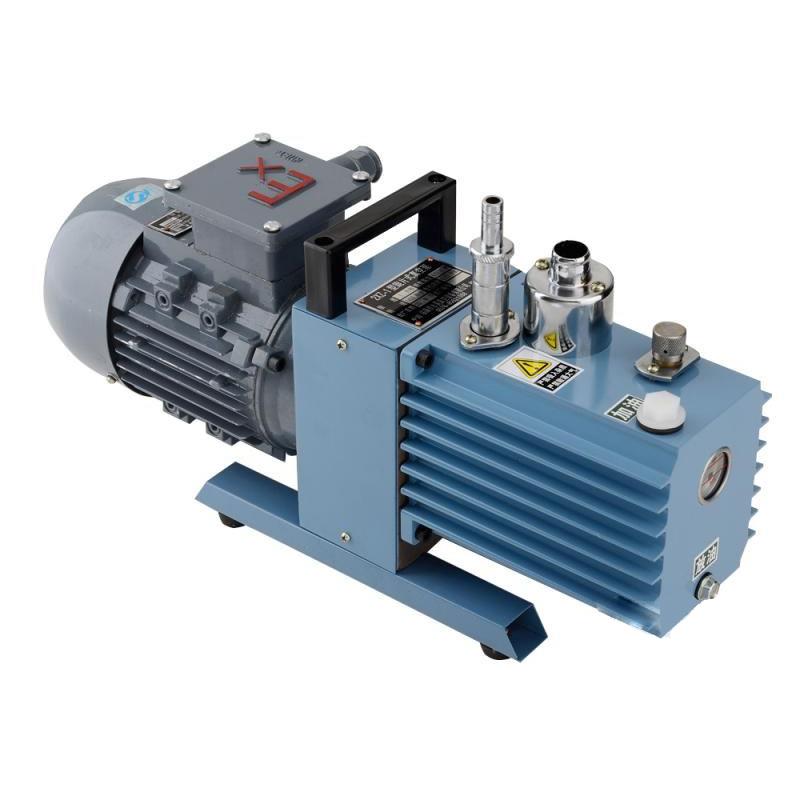

2XZF-1 Rotary Vane Air Vacuum Pump
Description
2XZF-1 pump is suitable for underground coal mine environments where methane or coal dust exists,
and is widely used in petroleum, chemical, military, medical, pharmaceutical, scientific research, mines,
oil depots, laboratories and other related fields.
Technical Parameters
Model
2XZF-1
Pumping speed (L/S)
1
Ultimate pressure (Pa)
Partial pressure≤6×10-2
Full pressure
≤1.33
Speed (r/min)
1400
Working voltage (V)
380
Motor power (Kw)
0.25
Air inlet diameter (outer diameter) (mm)
Φ20
KF-16
Noise (dBA)
65
Oil capacity (L)
0.6
Dimensions (mm)
440×168×240
Gross weight/net weight (Kg)
24/22
