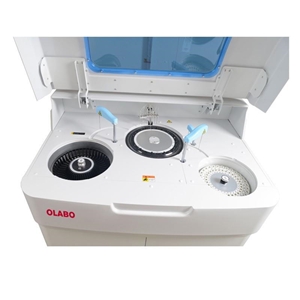

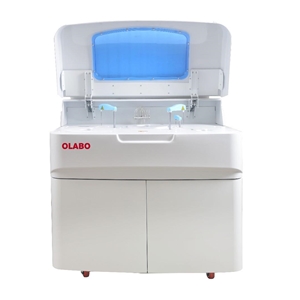

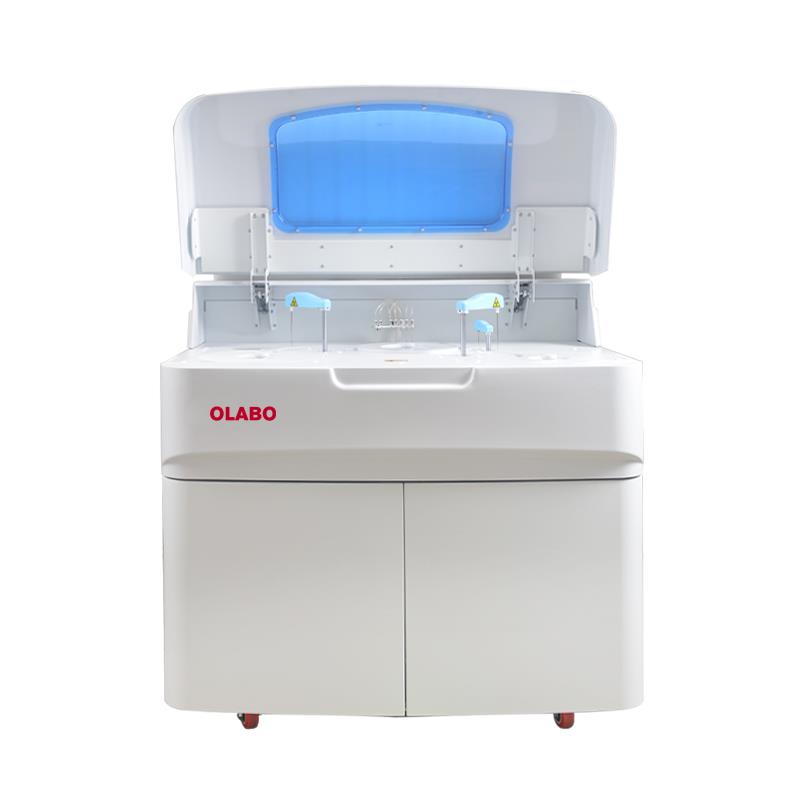

BK-400 Auto Chemistry Analyzer

  • Model: BK-400
  • Brand: OLABO
  • Ship From:
  • Price: Inquiry
  • MOQ: 1
  • Shipping: Within 10-15 working days.
Get Price
  • Best sellers
  • New arrivals
  • Model: BYC100
    2-8℃ BYC100 laboratory medicine refrigerator
  • Model: BDF-40V268
    -40℃ Low Temperature 268L Freezer
  • Model: BDF-86V598
    -86℃ Ultra Low Temperature Vertical Freezer
  • Model: BDF-40V90
    -40℃ Ultra Low Temperature Vertical Freezer
  • Model: BDF-86H118
    -86℃ China Laboratory Horizontal Deep Chest -86Degree Freezer

Product details

Shipping methods

Payment methods

Data download

BK-400 Auto Chemistry Analyzer 400 Tests/Hour With 37 Sample Positions

Features

1. 400 Tests per hour.

2. 90 Reagent positions.

3. 120 Reaction cuvettes.

4. Built-in sample barcode system optional.

5. 60 Sample positions (90 sample positions optional)

6. Probe with anti-collision function, liquid level dectection function.

Technical Parameters

Model BK-400 
Overall
Throughput
400 Test/hour
Performance
Analysis Method
End-point, Fixed-time, Rate(Kinetic), Turbidimetry
Certification
CE, FDA, ISO9001, ISO14001, ISO13485
Sample Positions
60 or 90 sample positions, built-in barcode system available
Sample & Reagent System
Reagent Positions
45 refrigerated reagent positions
Sample Volume
2~70μl
Reagent Volume
20~350μl

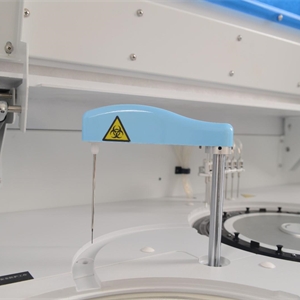

Probe
Teflon coating ,with anti-collision function, liquid leveldetection function
Probe Washing
Automatic washing interior and exterior
Reagent Cooling
Refrigerated tray with independent switch
Temperature Control
37±0.1℃, real-time monitoring
Reaction System
Cuvettes
120reusable cuvettes, optical length 6mm
Mixer Probe
Independent stirring
Washing
Automatic cuvettes washing
STAT function
YES
Optical System
Light Source
12V/30W halogen-tungsten lamp
Spectrophotometry
Post-spectral spectrophotometry
Wavelength
340,405,450,510,546,578,630,700nm
Absorbance
0~3.0Abs
Calibration & QC
Calibration
Linear:K factor, 1-point ,2-point and multipoint linear
  Non-Linear:Spline,Polygon, Index, Ogarithm, Logit-4P, Logit-5P
Quality Control
Real-time QC, Westgard multi rule, Cumulative Sum Check,Twin Plot(2D)
Data Management
Software
Windows 7/8/10 , 32or 64bit
LIS System
Bi-direction,support HL7 protocol
Interface
LAN port access
Printer
External,multiple reporting mode available
Working Conditions
Power Supply
AC220V±10%,50/60Hz, 110V±10%,60Hz, 300W
Temperature
10～30℃
Water Consumption
Deionized water:12L/H
Humidity
30-80%
Size & Weight
External Size (W*D*H)
1167*780*1016mm
Net Weight
193kg
Package Size (W*D*H)
1348*928*1399mm
Gross Weight
267kg
