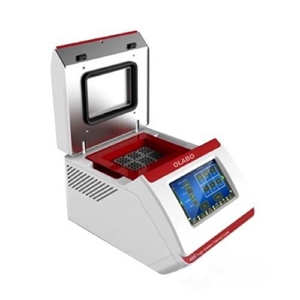

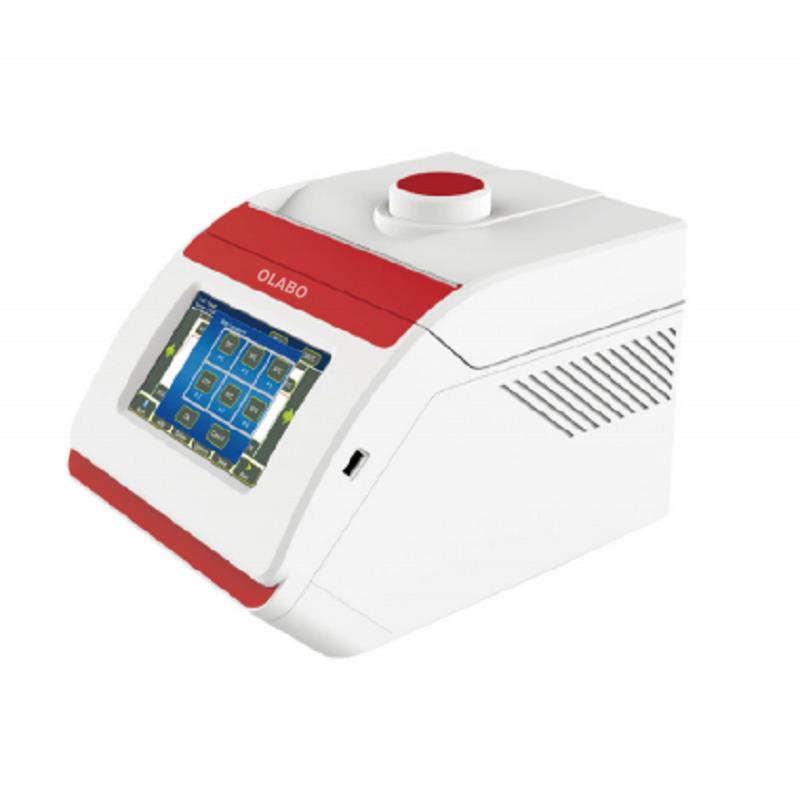

Touch Screen Laboratory DNA Testing Super Gradient Thermal Cycler PCR
Specification
| Model | A600 |
|
Block
|
6*16 wells *0.2
individual module
|
|
Six different annealing
temperatures could be set for each zone
|
|
|
Tube Type
|
0.2ml PCR tubes, 8/12
strips, 96 wells PCR plate
|
|
Peltier Technology
|
NewGenerationPeltierTechnology
|
|
Display
|
7 inches color touch
screen, graphically display the realtime protocols and running status
|
|
Language
|
Full English
|
|
Communications Ports
|
2 USB and 1 LAN
|
|
Venting System
|
Front air in and back
air out, two cyclers can be placed side by side
|
|
Block Temperature Range
|
0℃~105℃
|
|
Max. Heating Rate
|
5.5℃/s
|
|
Max. Cooling Rate
|
4.5℃/s
|
|
Temperature Uniformity
|
≤±0.15℃
|
|
Temperature Accuracy
|
≤±0.10℃
|
|
Display Resolution
|
0.10℃
|
|
Ramping Rate Adjustable
|
Yes
|
|
Mode of Temperature
Control
|
Sim-tube & Block
mode
|
|
Gradient Accuracy
|
≤±0.15℃
|
|
Zone Uniformity
|
≤±0.20℃
|
|
Gradient Range
|
0℃~105℃
|
|
Temperature
Differential Range
|
Less than 25℃ between
two adjacent zones
|
|
Gradient Capability
|
6-zone temperature can
be set independently, better than traditional gradient function
|
|
Max. No. of Programs
|
Max. 15,000 programs
onboard, unlimited storage of protocols with USB flash drive
|
|
Max. Step
|
30 steps, multiple
nesting cycle available
|
|
Max. Cycle
|
100typical cycles, max.
60,000 nesting cycles
|
|
Time
Increment/Decrement
|
1~120 sec, available
forlong PCR &touchdown PCR
|
|
Temperature
Increment/Decrement
|
0.1~10.0℃, available
for touchdown PCR
|
|
Auto Pause / Auto
Restart
|
Yes
|
|
Multi-userLog in
|
With password-based
authentication prevents from view, copy and alteration of protocols
|
|
Tm Calculator
|
Automatically calculate
the melting and annealing temperature with two primer sequences
|
|
Hold at 4℃
|
Yes, an infinite
incubation time at low temperature for overnight working
|
|
Program Wizard
|
Yes, create PCR
protocols with only a few clicks
|
|
Running Report
|
Yes, provide precise
information for the whole experiment
|
|
PC Connection
|
Yes, PC remote control
to manage multi units across the newwork
|
|
Height of Heat Lid
|
Steplessly adjustable
Lid, accommodates all kinds of PCR tubes, strips and plates
|
|
Lid Feature
|
Innovative
"TOP-OPEN" technology, protection from over- pressure
|
|
Heat Lid Temperature
Range
|
30℃~112℃
|
|
Auto Shut-off
|
Yes
|
|
Power Supply
|
85V-265V, 50-60Hz Max.
600W
|
|
Package Size(L*W*H)
|
362*256*255mm
|
|
Net Weight
|
7.3kg
|
