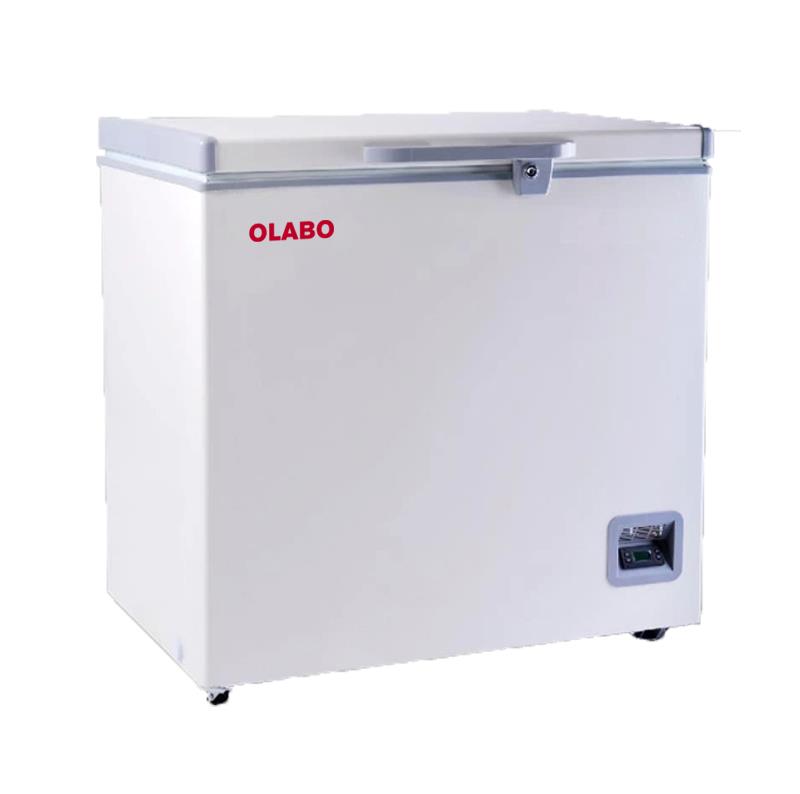

Horizontal Type -25 Degree Freezer
Technical Parameters
| Model | BDF-25H226 | |
| technical parameter | Cooling method | Direct cooling |
| Defrost method | No frost | |
| Refrigerants | R600a/60g | |
| Temperature | Ambient temperature | 10~32℃ |
| Temperature range | -10℃～–25℃ | |
| Control | number of compressors | 1 |
| Evaporator type | Coil type | |
| Evaporator material | Aluminum tube | |
| Condenser type | Wire tube | |
| Condenser material | Bondi tube | |
| Sensor type | NTC | |
| thermostat | Electronic temperature control | |

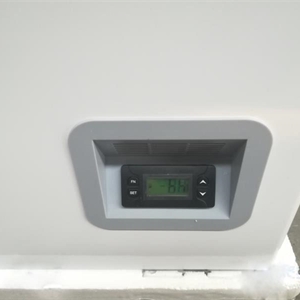

| Display method | Digital display | |
| Electrical parameters | Voltage/frequency（V/Hz) | 220/50 |
| Power (W) | 100 | |
| Current（A) | 0.3 | |
| Material | Internal material | Embossed aluminum plate |
| External material | Color coated steel plate | |
| heat insulation | Polyurethane foam | |
| Size | Effective volume （L) | 226 |
| Net/Gross weight（kg) | 42/47 | |
| External dimensions (W×D×H) (mm) | 945×625×866 | |
| Packing size (W×D×H)（mm) | 970×638×909 | |
